QB2 with Miniflashing

17662DF

$510.00 / KTP
NEW BEST SELLER
Part Number 17662DF Multi Roof Mount - 5/16 X 4" QB2 Kit with 3" Micro and Mini flashing with SS Low Profile L-Foot & Flange Nuts 50/Case- Case Weight = 31.00 Lbs

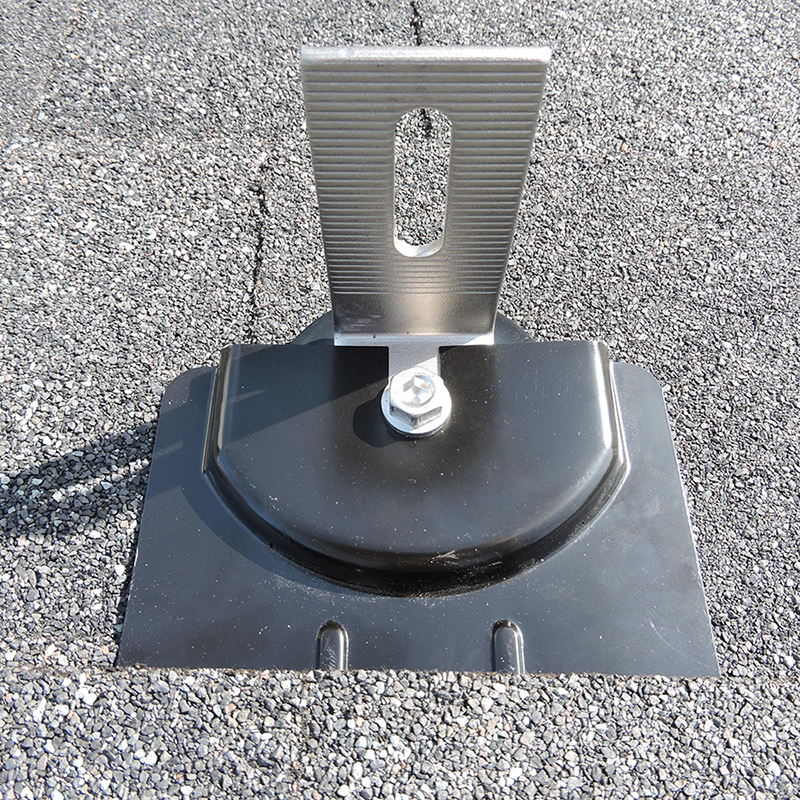

Mount Installed on Roof

QB2 with Miniflashing

17662DF

Detail

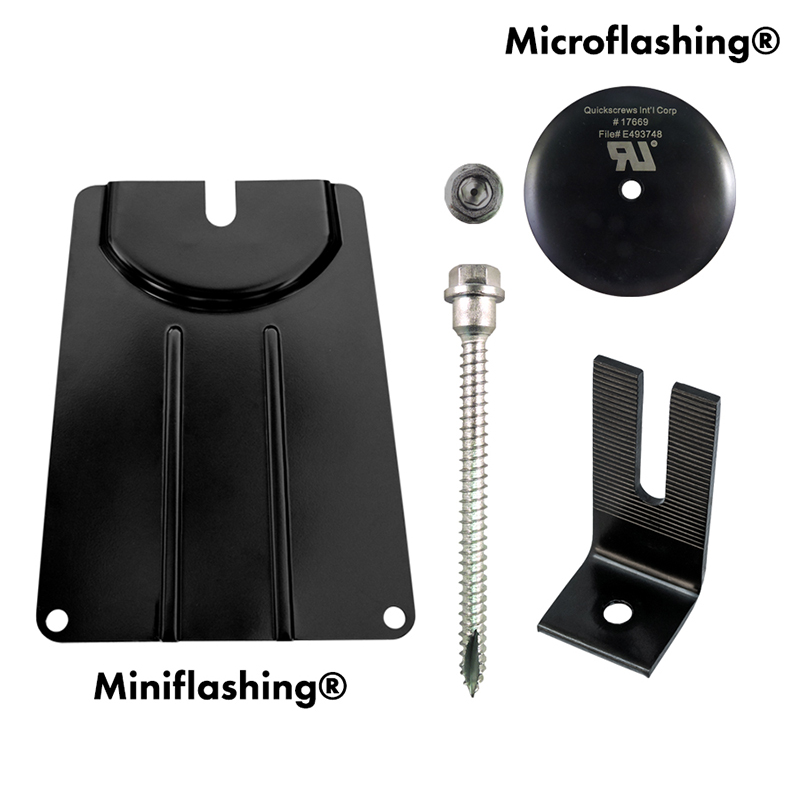

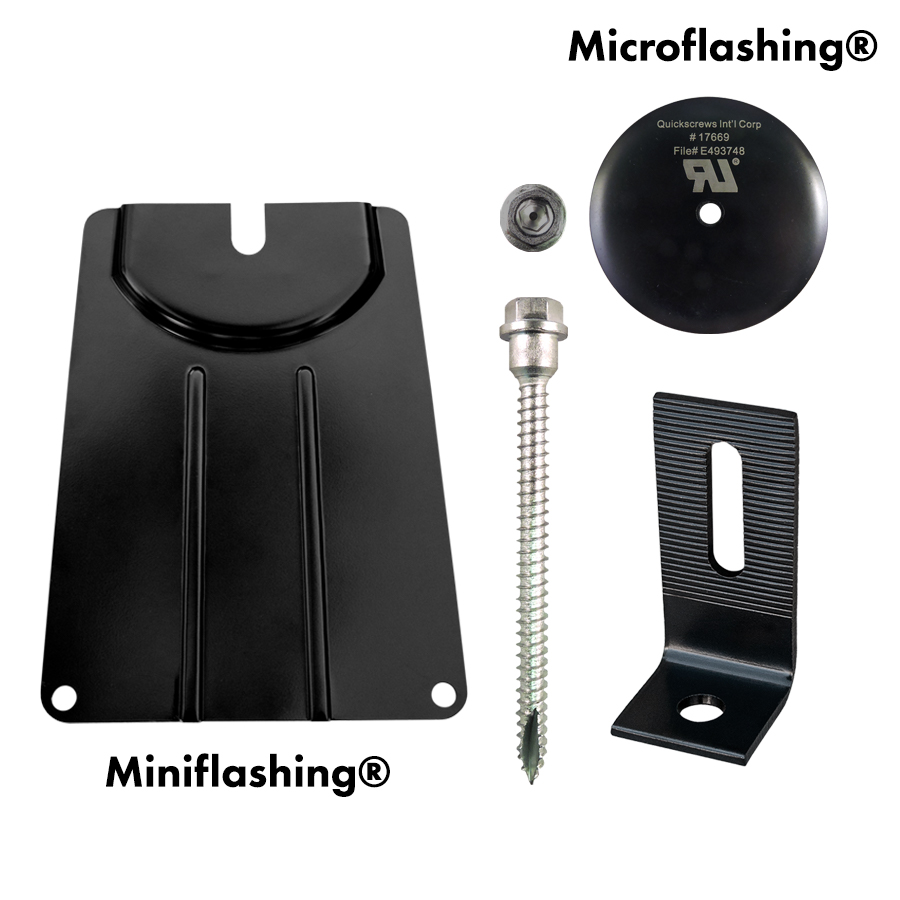

Multi Roof Mount - QB2 Kit with 3" Micro and Miniflashing with Stainless Steel Low Profile L-Foot & Flange Nuts

Quantity per KTP

KTP Weight
31 lb

QuickBOLT Length

Microflashing®

Stainless Steel L-Foot

Serrated Flange Nuts

T-Bolt Size

No T-Bolts
NEW BEST SELLER
$510.00 / KTP

Recommended Products

The QB2 Kit with Dual Flashing is an easy way to mount Solar to a variety of roofs.

  • 50 Mounts per Order Minimum.
  • Product ships complete in one Case.
  • Sealant is Optional.
  • Leak Proof-Water Test Results. ASTM E331 @ 15.00 PSF No Leakage.
  • ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage. ASTM E2140 (modified), 6" water column for 7 days No Leakage.
  • To compress properly with QB2 requires 150 Minimum Torque Lbs/Inch.
  • The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts. Compatible with Rail and Most Rail-less Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten.
  • Simply Drill, seal, and mount!
  • Patent #8448407

17662DF AHJ Permit Packet

Miami-Dade County NOA

BoltSeal® Poster

Product Details

The QB2 Kit with Dual Flashing is an easy way to mount Solar to a variety of roofs.

  • 50 Mounts per Order Minimum.
  • Product ships complete in one Case.
  • Sealant is Optional.
  • Leak Proof-Water Test Results. ASTM E331 @ 15.00 PSF No Leakage.
  • ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage. ASTM E2140 (modified), 6" water column for 7 days No Leakage.
  • To compress properly with QB2 requires 150 Minimum Torque Lbs/Inch.
  • The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts. Compatible with Rail and Most Rail-less Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten.
  • Simply Drill, seal, and mount!
  • Patent #8448407
